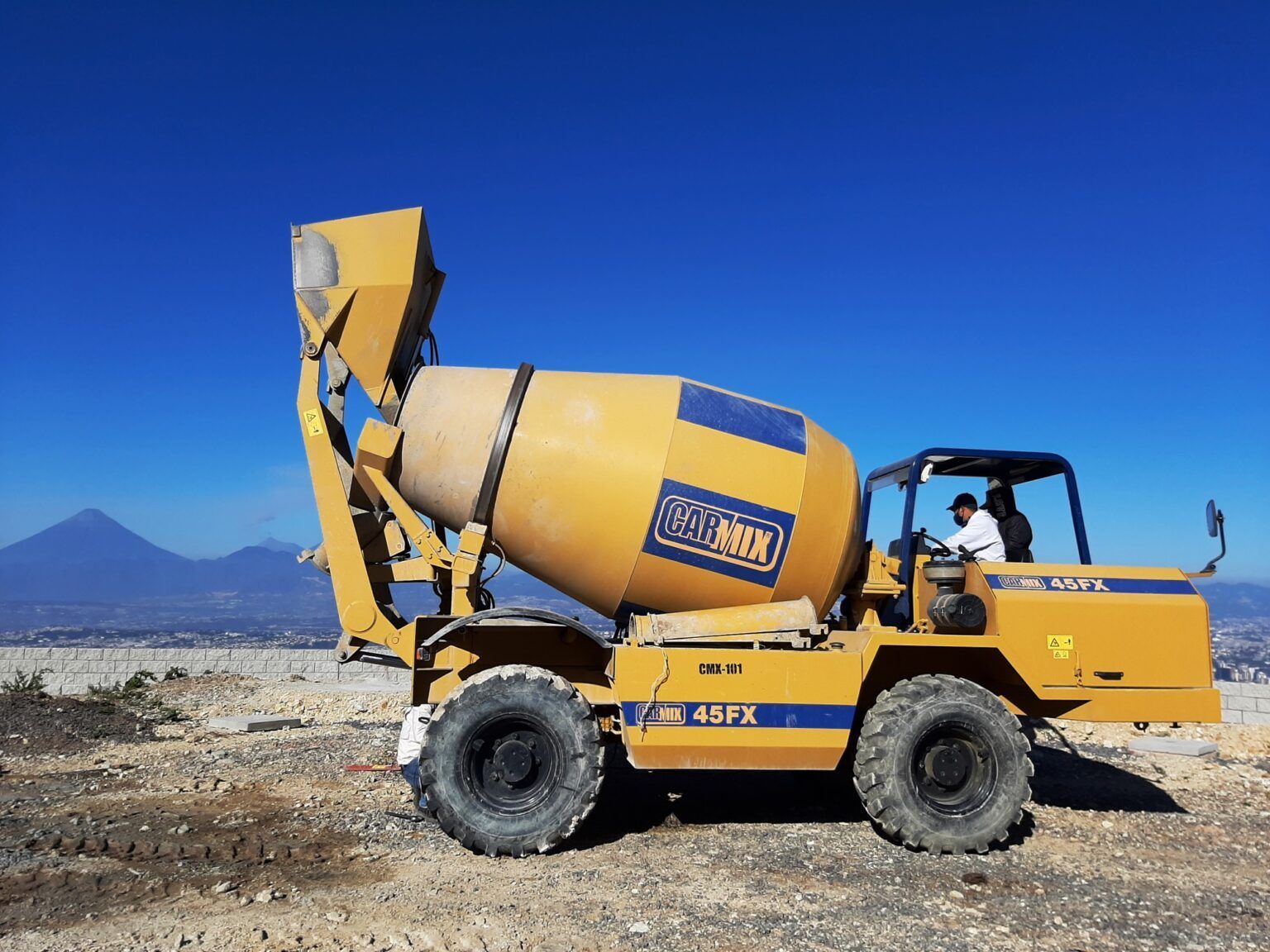

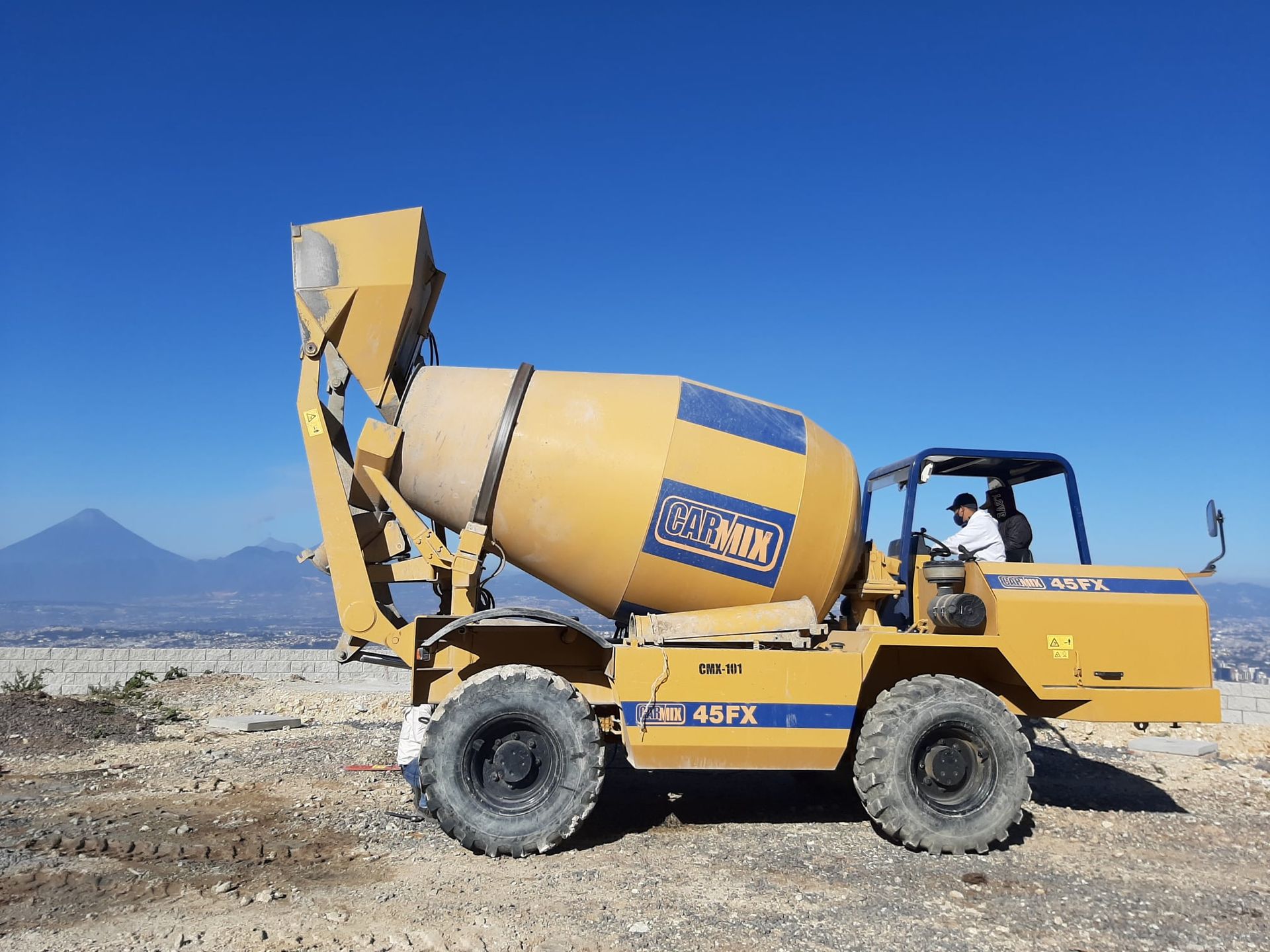

Carmix 45FX
Concrete Mixer 4x4
The Carmix 45FX has a concrete yield of 4.5m³ per batch.
The fixed drum has a 6050 litre capacity and is fitted with double mixing screws, while the drum’s rotation is controlled by a hydraulic motor which controls the mixing and discharging speed.
The Carmix 45FX boom is equipped with a self-articulated hydraulically operated 400 litre shovel with opening gate that allows efficient loading of aggregates and cement. Additionally the Carmix 45FX has two 590 litre water tanks with a water pump capable of pumping 400 litres per minute.
The Carmix 45FX has an operating speed of 0-10km/h, road transfer speed from 0-25km/h and is capable of operating on gradients of up 30° fully loaded.
Carmix 45FX is ideal for
Construction companies producing volumetric batches of concrete for a variety of applications which include but not limited to floor slabs, mortar, plaster as well as fine aggregate concretes.
Technical Specifications(PDF)
